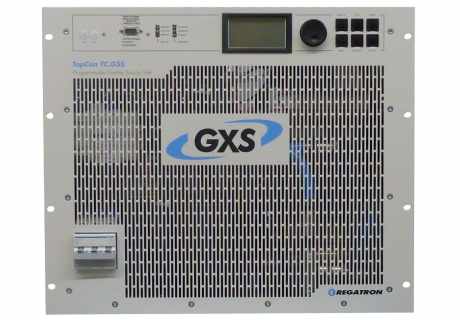

可编程直流电子负载 TC.GXS
    发布时间: 2022-11-03 16:46
可编程直流电子负载 TC.GXS


       TC.GXS是一系列基于电路技术的单向大功率直流吸收（电子负载）单元。交流输入模块是由一个有源PFC结构组成，无需外部装置进行功率因数校正。此外，有源中频转换器拓扑即使在负载电路的情况下也能提供宽带动态和稳定性。与所有的REGATRON 瑞士瑞佳通DC直流电源一样，TC.GXS采用强大的多处理器结构，不仅提供全数字控制，而且还提供板载实时数据处理。通过这种方式，多功能函数发生器TFE正在部署或“Application Area programming”为单元（可选配）启用y=f(x)传输特性。



产品特点

    • TopCon并网源技术可实现快速回馈Q4模式操作

    • 带有集成EMI滤波器的紧凑型设计

    • 恒定电压 (0 – 100 %)，恒定电流 (0 – 100 %) 和恒定功率运行 (5 – 100 %)

    • 内阻模拟

    • 产品线：65 VDC， 130 VDC， 400 VDC， 500 VDC， 600 VDC， 每个串联连接的电压最高可达1500VDC

    • 20kW和32kW的功率类别可用于每个标称直流输入电压

    • 可选附件满足电源的产品线

    • 易于增加功率的模块化概念：并联、串联、矩阵或多负载主从操作

    • 现代中频转换技术的高效率和初级开关

    • 直流输入电隔离，全数字控制和调节

    • TopControl安装文件、LabVIEW® 和C/C++ C#/.NET API (DLL 文件) 都包含在交付范围内

    • 符合CE标准


Voltage Range
   DC Load Side
   VDC

Power Range
   DC Load Side



              kW

Current Range
   DC Load Side
   A

Order Code

Line Voltage
   3L



          VAC

Line Frequency




         Hz

0 - 65 V

0 – -20 kW

0 – -385 A

GXS.20.65.385

380 - 480 V

48 - 62 Hz

0 – -32 kW

0 – -600 A

GXS.32.65.600

380 - 480 V

48 - 62 Hz

0 – -40 kW

0 – -770 A

GXS.40.65.770

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -1200 A

GXS.64.65.1200

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -1800 A

GXS.96.65.1800

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -2400 A

GXS.128.65.2400

380 - 480 V

48 - 62 Hz

-160 kW - MW   range

≥ -3000 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 130 V

0 – -20 kW

0 – -192 A

GXS.20.130.192

380 - 480 V

48 - 62 Hz

0 – -32 kW

0 – -308 A

GXS.32.130.308

380 - 480 V

48 - 62 Hz

0 – -40 kW

0 – -384 A

GXS.40.130.384

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -616 A

GXS.64.130.616

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -924 A

GXS.96.130.924

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -1232 A

GXS.128.130.1232

380 - 480 V

48 - 62 Hz

-160 kW - MW   range

≥ -1540 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 260 V

0 – -40 kW

0 – -192 A

GXS.40.260.192

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -308 A

GXS.64.260.308

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -616 A

GXS.128.260.616

380 - 480 V

48 - 62 Hz

-192 kW - MW   range

≥ -924 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 400 V

0 – -20 kW

0 – -63 A

GXS.20.400.63

380 - 480 V

48 - 62 Hz

0 – -32 kW

0 – -100 A

GXS.32.400.100

380 - 480 V

48 - 62 Hz

0 – -40 kW

0 – -126 A

GXS.40.400.126

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -200 A

GXS.64.400.200

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -300 A

GXS.96.400.300

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -400 A

GXS.128.400.400

380 - 480 V

48 - 62 Hz

-160 kW - MW   range

≥ -500 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 500 V

0 – -20 kW

0 – -50 A

GXS.20.500.50

380 - 480 V

48 - 62 Hz

0 – -32 kW

0 – -80 A

GXS.32.500.80

380 - 480 V

48 - 62 Hz

0 – -40 kW

0 – -100 A

GXS.40.500.100

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -160 A

GXS.64.500.160

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -240 A

GXS.96.500.240

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -320 A

GXS.128.500.320

380 - 480 V

48 - 62 Hz

-160 kW - MW   range

≥ -400 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 600 V

0 – -20 kW

0 – -40 A

GXS.20.600.40

380 - 480 V

48 - 62 Hz

0 – -32 kW

0 – -66 A

GXS.32.600.66

380 - 480 V

48 - 62 Hz

0 – -40 kW

0 – -80 A

GXS.40.600.80

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -132 A

GXS.64.600.80

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -198 A

GXS.96.600.198

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -264 A

GXS.128.600.264

380 - 480 V

48 - 62 Hz

-160 kW - MW   range

≥ -330 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 800 V

0 – -40 kW

0 – -63 A

GXS.40.800.63

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -100 A

GXS.64.800.100

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -200 A

GXS128.800.200

380 - 480 V

48 - 62 Hz

-192 kW - MW range

≥ -300 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 2000 V

0 – -40 kW

0 – -50 A

GXS.40.1000.50

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -80 A

GXS.64.1000.80

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -160 A

GXS.128.1000.160

380 - 480 V

48 - 62 Hz

-192 kW - MW   range

≥ -240 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 1200 V

0 – -40 kW

0 – -40 A

GXS.40.1200.40

380 - 480 V

48 - 62 Hz

0 – -64 kW

0 – -66 A

GXS.64.1200.66

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -100 A

GXS.96.1200.100

380 - 480 V

48 - 62 Hz

0 – -128 kW

0 – -132 A

GXS.128.1200.132

380 - 480 V

48 - 62 Hz

-192 kW - MW   range

≥ -198 A

Contact Sales

380 - 480 V

48 - 62 Hz

0 - 1500 V

0 – -60 kW

0 – -50 A

GXS.60.1500.50

380 - 480 V

48 - 62 Hz

0 – -96 kW

0 – -80 A

GXS.96.1500.80

380 - 480 V

48 - 62 Hz

0 – -120 kW

0 – -100 A

GXS.128.1500.100

380 - 480 V

48 - 62 Hz

-192 kW - MW   range

≥ -160 A

Contact Sales

380 - 480 V

48 - 62 Hz
